Product description

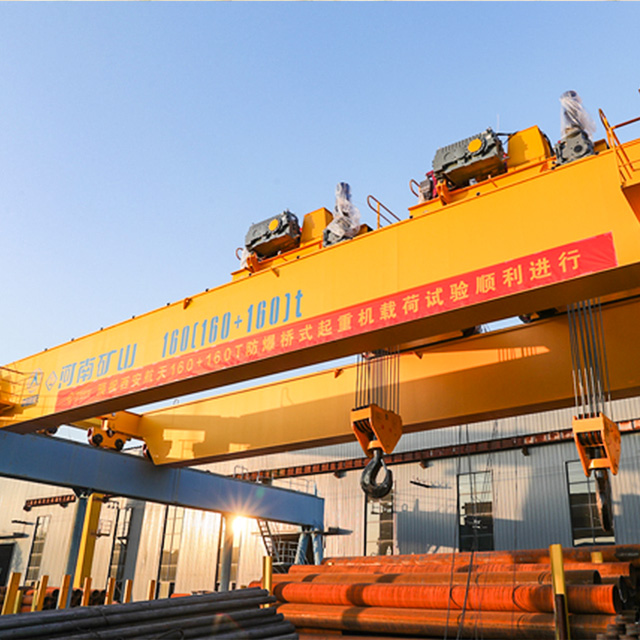

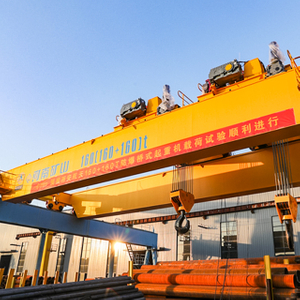

Double beam explosion proof trolley crane is one of the larger explosion-proof crane equipment in China and is applied in the aerospace industry. It is composed of two 160t explosion-proof lifting trolleys, a heavy-duty bridge frame and a three-in-one transport drive.
The crane has obtained Explosion-proof Certificate after passing examinations by units designated by the government to test explosion-proof products. The explosion-proof marks are ExdⅡCT4 respectively.
Main specification
Capacity: 5,10,16/3.2,20/5,32/5,50/10t
Span: 10.5-31.5m
Lifting height: 6,9,12,18,24,30m
Lifting speed: 20,30m/min
Widely used in: Factories, warehouses, cement plants, etc.
Technical Parameter
Capacity | T | 32/5, 50/10 | |||||||
Span | m | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 |
Lifting height | m | 16/18 | |||||||
Lifting speed | m/min | 15.6 | |||||||
Trolley travelling speed | m/min | 3.36-33.6,2.9-29 | |||||||
Crane travelling speed | m/min | 92.7 | 93.7 | 86.5 | |||||
Total weight | kg | 15406 | 17290 | 20020 | 21724 | 24213 | 28579 | 31970 | 35389 |
Max. Wheel load | KN | 104 | 111 | 120 | 125 | 132 | 144 | 152 | 162 |
Rail recommended | Model | 43kg/m | |||||||
Total motor power | kw | 27.8 | 31.8 | ||||||
Main dimension (mm) | Span(m) | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 |
Rail top to crane top | H | 1750 | 1840 | ||||||
Rail top to hook center | H4 | 55 | 5 | ||||||
Crane base distance | W | 5140 | 5334 | 5940 | |||||
Crane width | B | 3450 | 4400 | ||||||
Trolley rail distance | K | 1400 | |||||||
Hook left limitation | S1 | 800 | |||||||
Hook right limitation | S2 | 1250 | |||||||
Structure
Steel Material: Chinese standard Q235B and Q345B.
Trolley rail is made of high strength hot rolled flat steel (16 Mn).
Epoxy zinc-rich painting for one bottoms and two sides of 120μm thick, to achieve a long lifespan, beautiful appearance and good luster.
The girder and end beam are connected together by high strength bolts to ensure the structure strength and precision of the whole machine. The end beams are equipped with flat wheel or double rim wheels, anti-friction bearings, buffer blocks and derailment preventing end plate.
Maintenance walkway is located on one side of the main girder, consisting of flower pattern plate, 1050meters handrail.
Applied to explosion transfer capacity no higher than the II B or II C-class and the sites with explosive air mixture formed with inflammable gas (or steam) and air whose factory ignition temperature groups between T1 group and T4 group. The applicable hazardous area: 1 division or 2 division.
The working duty:A5~A8.
Case
Application
The double girder explosion proof overhead crane is widely applied in the aerospace industry, factories, warehouses, cement plants, etc.
Anti-explosion overhead crane capacity with working light can be used to lift loads from 5 tons to 350 tons, which is widely used to upload and move of normal weight in the fixed crossing space and also can work with various special-purpose hoist in special operations.
Anti-explosion overhead crane capacity with working light is widely used to upload and move of normal weight in the fixed crossing space and also can work with various special-purpose hoist in special operations.
Henan Mine Crane Co.,LTD has top advanced processing and manufacturing equipment and processing technology in the crane industry all over China. At the same time, Henan Mine Crane Co.,LTD takes the better management, better manufacturing, better management as the first principle, Try the best to ensure product quality and satisfy customer demand.
