C Hook Type Bridge Crane for Coil

The hook bridge crane is a widely used general lifting machine at present. It mainly consists of a box-shaped bridge frame, a hoisting trolley, a traveling mechanism for the large vehicle and an electrical control system. The lifting device is hook.

Availability:

Quantity:



Inquire

Product Description

Product description

The hook bridge crane is a widely used general lifting machine at present. It mainly consists of a box-shaped bridge frame, a hoisting trolley, a traveling mechanism for the large vehicle and an electrical control system. The lifting device is hook.

Main Specifications

Load Capacity: 5~50t, customized
Span: 10.5~35 m, customzied
Lifting Height: 3~25m, customzied
Color: Yellow, red or customzied
Working temperature: -25°C to +40°C
Humidity: ≤85%
Working condition is A5-A7

Technical Parameter

Capacity (t)	Coil width（mm）	Diameter of inner coil （mm）	Inner width （mm）	Inner height （mm）	Self weight（Kg）
3	≤300	≥400	300	432	130
3	300-500	≥400	500	450	350
5	750-900	≥400	900	500	450
	900-1100	≥506	1100	600	650
	1100-1300	≥506	1300	600	800
10	750-900	≥506	900	650	600
	900-1120	≥506	1120	850	900
	1100-1300	≥506	1300	750	1000
	1300-1500	≥506	1500	850	1200
15	900-1100	≥506	1100	850	1200
15	1100-1500	≥506	1500	850	1600
25	900-1100	≥506	1100	860	1800
25	1100-1500	≥506	1500	860	2500
30	1400-1660	≥506	1660	850	3400

Structure

I.Main girder

Tracks are laid on the main beam for the hoisting trolley to move laterally along the direction of the main beam. The main beam is welded to the box-shaped end beam, with joints arranged in the middle of the end beam, which are connected by bolts or pins for the disassembly and transportation of the bridge frame.

II.Operation

The operation mode is equipped with three forms: ground handle, wireless remote control and driver's cab.

III.Operator Cabin

There are two types of cabs: open and closed. Inside, there are adjustable seats. The floor is covered with insulating pads. The window glass is made of tempered glass. According to the user's requirements, it can be equipped with air conditioners for heating and cooling, buzzers, walkie-talkies and other items.

VI.Optional accessories

The crane can be equipped with motor grabs, electromagnetic suction cups and other lifting devices to meet the needs of lifting various types of materials.

Case

Application

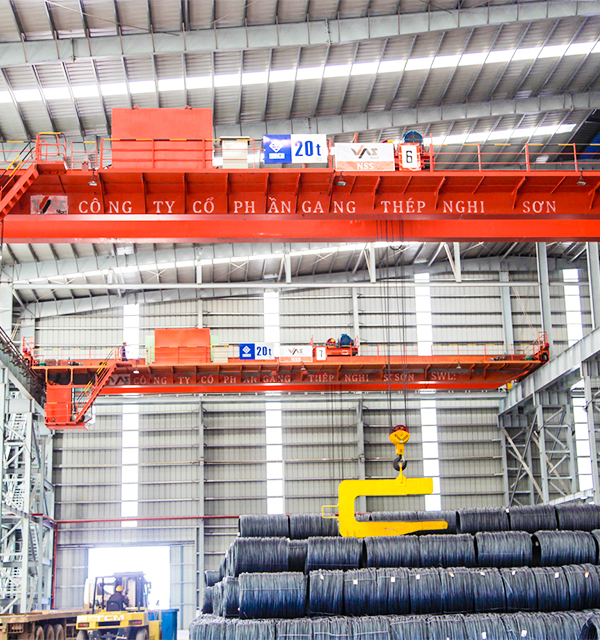

Double Girder Overhead Crane With C Hook is widely used in steel mill plants, warehouses, material stocks, goods yards, power station, logistic, etc. For lifting and moving steel products, steel coils, steel plates and steel pipes.
