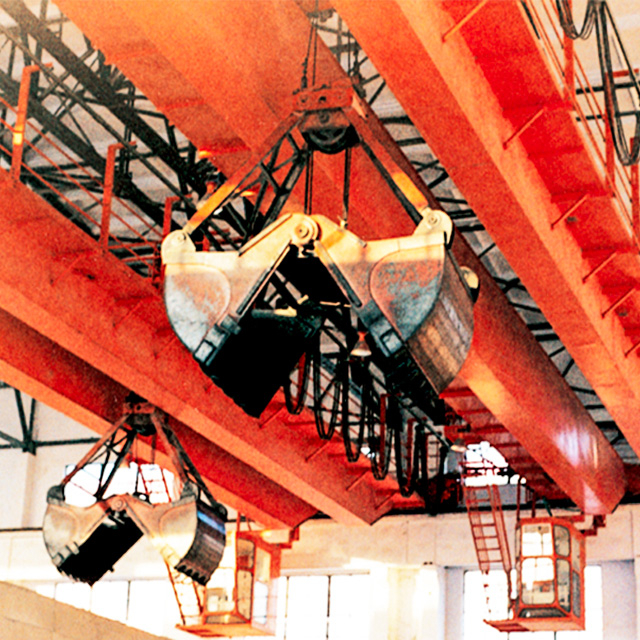

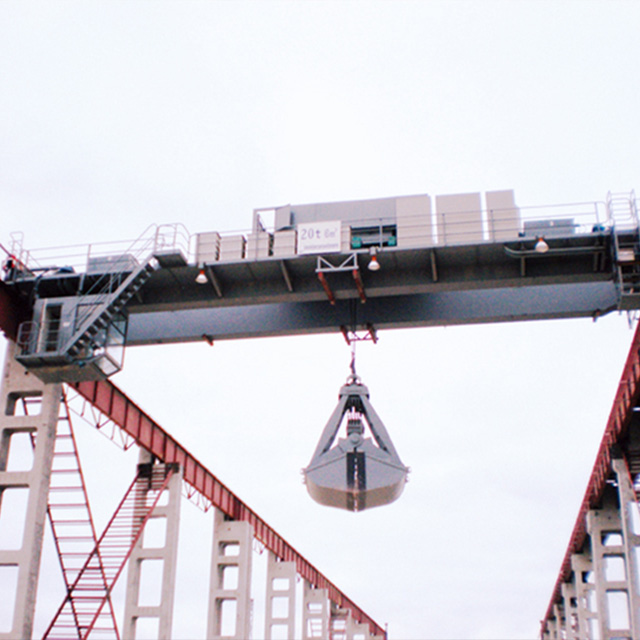

Double Girder Overhead Crane with Grab

Product description

Grab overhead crane is a kind of automatic feeding machinery which don’t need auxiliary personnel so as to decrease work intensity, saving working time and improve working efficiency to a great extent. The unloading and loading movement is controlled in the operation cabin. There are many types of grab overhead crane for sale, such as garbage overhead crane, grain grab overhead crane etc. Our grab bucket overhead crane can be used to grab different materials with the adoption of different types of grab bucket.

• Capacity: 5,10,16/3.2,20/5,32/5,50/10t

• Span: 10.5-31.5m

• Lifting height: 6, 9, 12, 18, 24, 30m

• Lifting speed: 20, 30m.min

• Working environment temperature: -20~40°C

Technical Parameter

Structure

Grab bucket bridge crane is mainly composed by box girder, grab trolley, trolley traveling mechanism, operation cab and electric control system, and its working class is A6 at most. The rated lifting weight of grab bucket overhead crane is generally 5 to 20t, and it also has simple structure, high lifting speed, flexible work and reliable work.

• The direction of platform door to the driver’s cap is: side, end and top.

• The lifting capacity includes the weight of the grab.

• The open direction of the grab includes paralleling with the beam and plumbing with the beam,this design is the plumbing type.

• The grab overhead crane includes main beam, lifting trolley, wheel, hook, pulley, electrics, grab.

• Control mode: Cabin control/remote control/control panel with pendant line.

Case

Application

Grab bucket overhead crane is widely used in bulk materials handling and transportation works of power plant, yard, workshop, dock etc.

• Port

• Factory

• Yard

• Power plant

• Steel melting plant

• Cement plant

• Waste renewable energy industry
