Product description
The rotating electromagnetic hanging beam overhead crane has slewing carrier-beam, which is applicable to the fixed span at indoors or outdoors of steel mill, yard and storage, etc. It is used for loading，unloading and carrying steel plate，profile steel, and spool, etc. It is especially applicable to lift material of different specifications which needs horizontal rotation. The lower part of the carrier—beam can bring special lifting appliances,such as magnetic chuck and tongs, etc.
Main Specifications
Technical Parameter

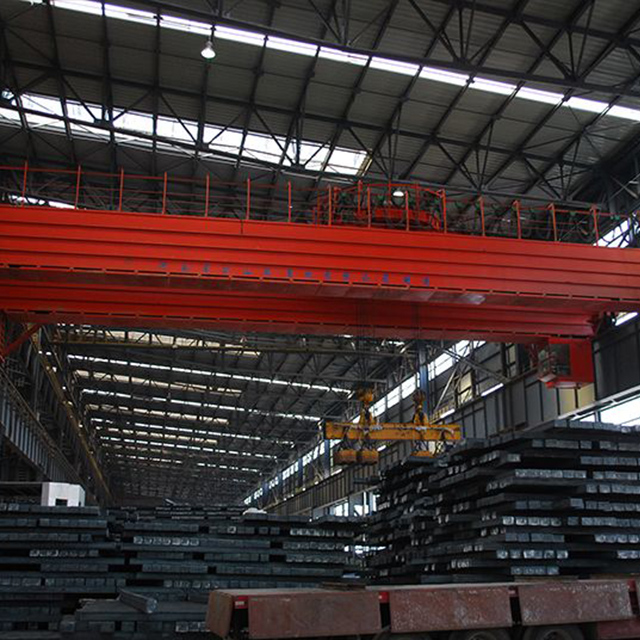

Overhead Crane With Upper Rotating Electromagnetic Beam | |||||
Capacity(t) | Span(m) | Lifting height(m) | Lifting speed(m/min) | Working duty | Turn round(r/min) |
5+5 | 28.5 | 12 | 12.4 | A6 | 1.5 |
10+10 | 25-34 | 16 | 12.6 | A7 | 1.36 |
16+16 | 25-33 | 10-16 | 14.8-16 | A6 | 1.36-1.85 |
25+25 | 25 | 10 | 15.4 | A6 | 1.4 |
Structure
1．The modes entering cab: from the end, from the side, from the top.
2．The lifting weight includes deadweight of the carrier—beam and special lifting appliances.
3．The max. rotating angle of the carrier—beam can be made as the user asks.
4．All above-mentioned data is for being used indoors.
5. The total power of the crane in the parameter list is the power of the travelling crane，but excludes the power of special lifting appliances.
Case
Application
The Rotatable electromagnetic hanging beam overhead crane is suitable for loading, unloading and carrying steel plates, profiles, coils and other materials in indoor or open-air fixed spans in steel mills, yards and warehouses, etc. It is especially suitable for lifting different specifications and requiring horizontal rotation. Especially suitable for lifting different specifications and need to rotate horizontally. Special spreader for carrying electromagnetic suction cups under the hanging beam.
