Product description

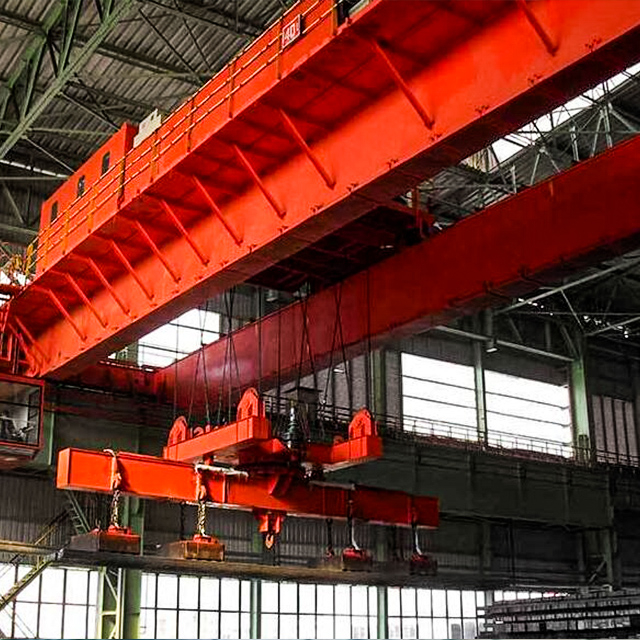

The slewing overhead crane is especially applicable to lift material of different specifications and which needs Horizontal rotation．The carrier-beam is cross structure，which is reliable and has good safety features，and has a certain function of preventing swinging．The lower part of the carrier-beam can bring special lifting appliances，such as magnetic chuck and tongs，etc
Structure
1．The modes of entering cab: from the end; from the side; from the top.
2．The lifting weigh tincludes deadweight of the carrier-beam and speciallifting appliances.
3．The max.rotating angle ofcarrier-beam is±180°.
4．The sizes of the limiting position Sland S2 in The figureare the data between the center line of carrier-Beam and the center line of the rail after the carrier-beam rotates 90°.
5．All below-mentioned data is for being used indoors.
6．The total power of the crane in the parameter list is the power of The travelling crane, but excludes the Power of speciallifting appliances.

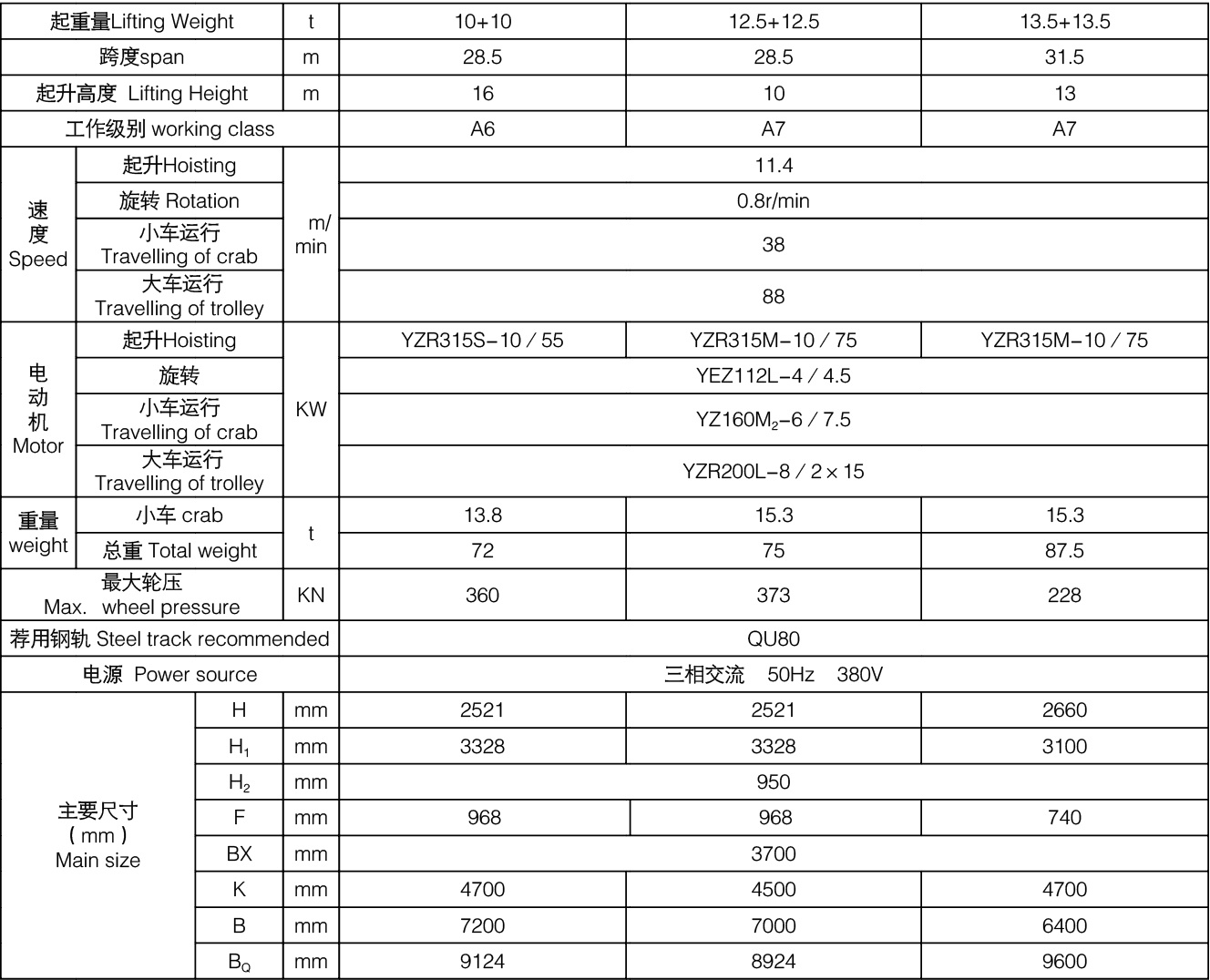

Technical Parameter
Application
The slewing overhead crane has slewing carrier beam that is applicable to the fixed span at indoors or outdoors of steel mill，shipyard，port，yard and storage，etc．It is used for loading，unloading and carrying steel plate，profile steel，and spool，etc．
