Product description

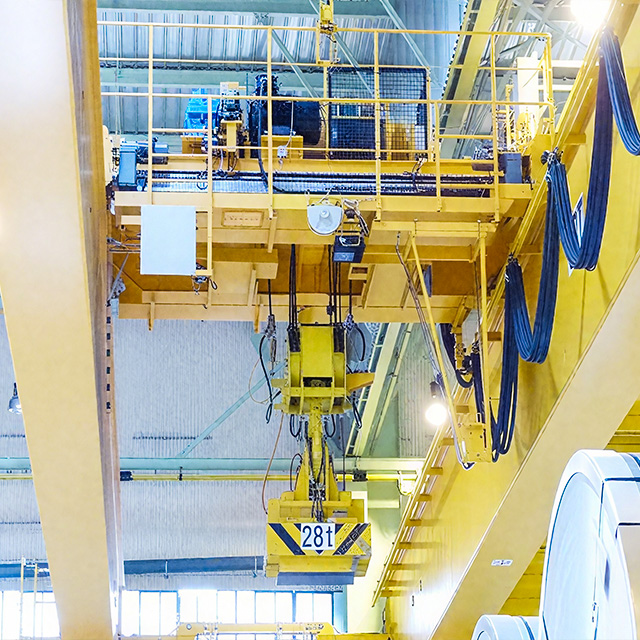

The QP type grab crane and electromagnetic dual-purpose bridge crane is a versatile and highly efficient lifting equipment, widely used in various industrial fields. The following is detailed information about the QP type grab crane and electromagnetic dual-purpose bridge crane:
Structure
The basic structure of the electromagnetic bridge crane is the same as that of the hook bridge crane. The difference lies in that a DC lifting electromagnetic suction cup is hung on the hook, which is used to lift ferromagnetic black metals and their products. The controllable silicon DC box installed in the driver's cab converts the AC power into DC power, and then the DC power is sent to the electromagnetic suction cup through the dedicated cable drum installed on the trolley via a cable.
1. Load-bearing capacity and span
Rated lifting capacity: Customizable according to requirements, up to 500 tons or more.
Span: The standard span is 22.5 meters, which can be adjusted according to actual needs.
2. Operating speed and lifting height
Travel speed of the main vehicle: Customized according to track length and operational requirements, up to 100 meters per minute.
Travel speed of the trolley: Also customized according to actual needs, up to 50 meters per minute.
Lifting height: Customized according to load weight and working requirements, up to 30 meters.
3. Work class and working environment
Work class: A5-A6 level, suitable for high-frequency operation scenarios.
Working environment: Can be used indoors or outdoors, suitable for various industrial environments.
4. Safety and reliability
Equipped with various safety protection devices, such as overload protection, anti-tilt protection, etc., to ensure the safe operation of the equipment. Using high-quality materials and advanced manufacturing processes to ensure the reliability and durability of the equipment.
Features
Double-beam bridge crane design: Adopting a double-beam bridge crane structure, it has stronger load-bearing capacity and stability.
Grasp bucket and electromagnetic dual use: The equipment is equipped with both a grasp bucket and an electromagnetic lifting device, meeting different material handling requirements.
High-precision operation: Equipped with advanced control systems, it ensures high precision and stability during operation.
Efficient operation: Designed for high-frequency operation scenarios, it improves production efficiency.

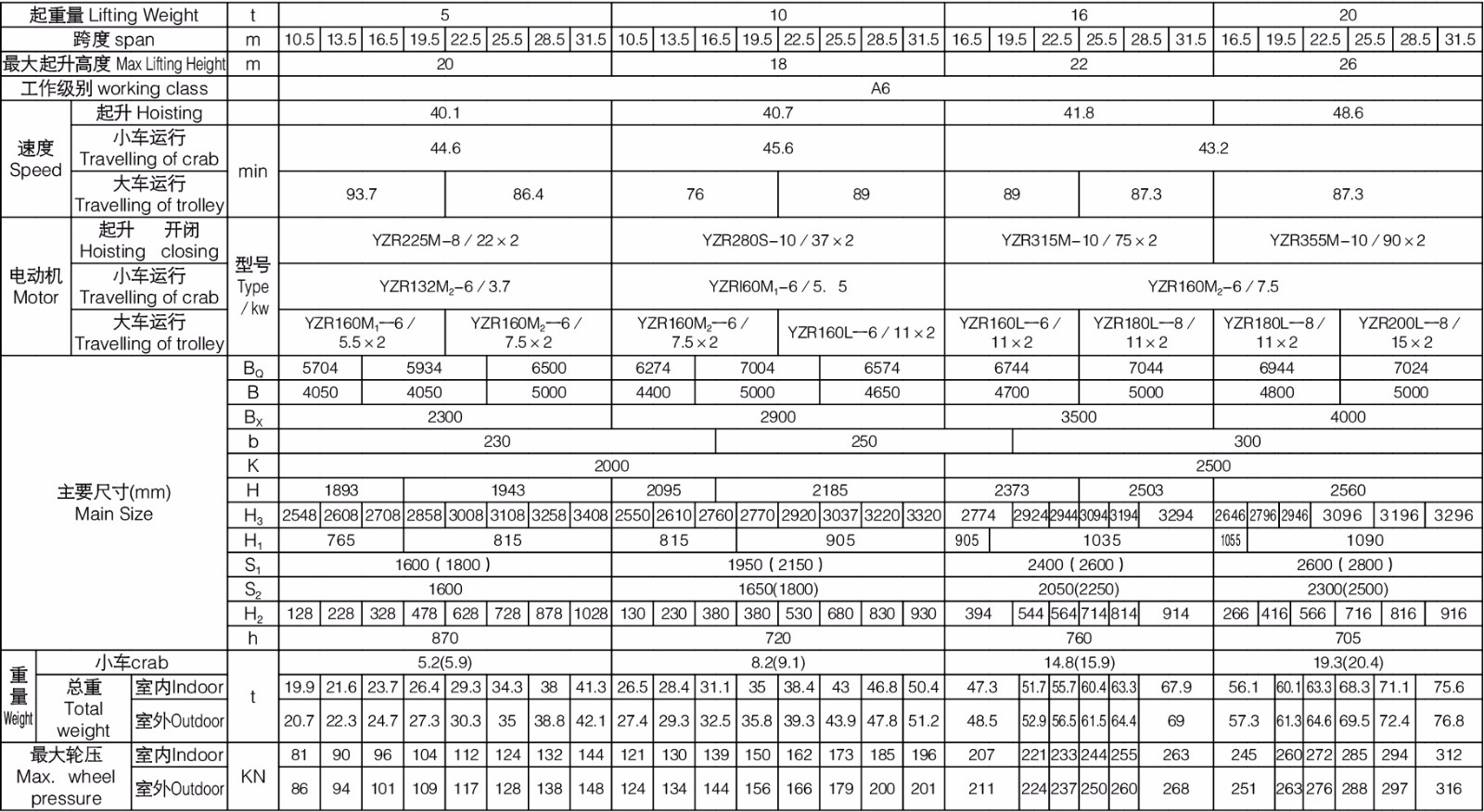

Technical Parameter
Application
The QP type grab and electromagnetic dual purpose bridge crane is a multi-functional and highly efficient lifting device, widely used in various industrial fields.
