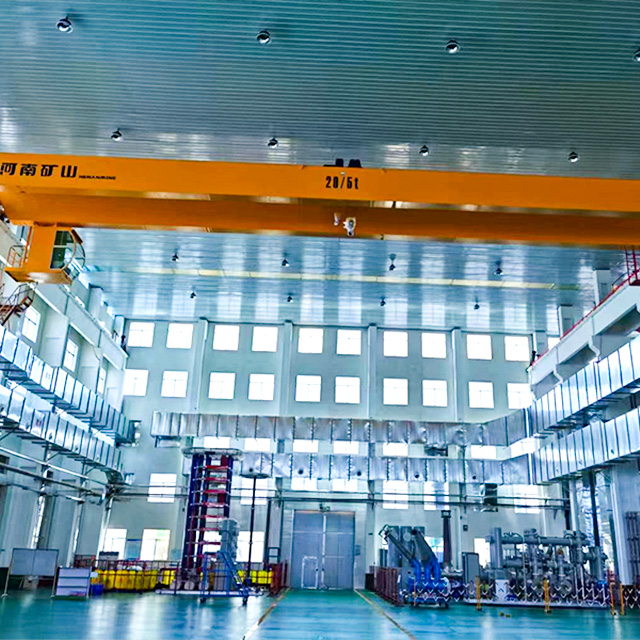

KSSL New type electric hoist double girder bridge crane

Product description

The KSSL general use bridge crane have sufficient strength, rigidity, stability and anti-overturning ability. With an attractive appearance, durability, good sealing performance, light weight, complete protection links, strong sets, convenient installation and adjustment, the overall structure is compact and good maintainability. All institutions can operate safely and reliably. Vibration, noise, environmental protection and energy conservation all meet the requirements of the current relevant standards. Energy conservation and safety both comply with the current relevant standards in China. Which ensure smooth operation and be able to run continuously for a long time.

Main specification

• Max. Lifting Load: 5~80t

• Span: 18.9m or customized

• Max. Lifting Height: 6~18m

• Rated Loading Capacity: 5~80t

Technical Parameter

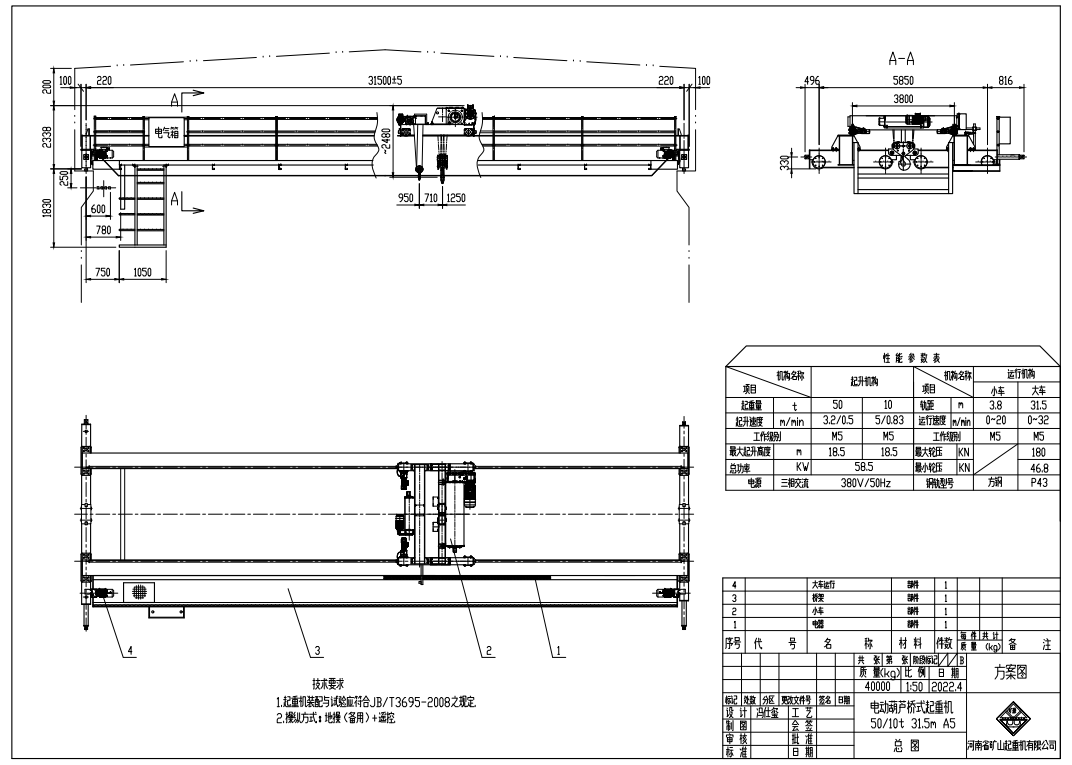

Structure

1. Light weight and low headroom, effectively saving construction resources.

Compared with ordinary bridge cranes, the self-weight is reduced by 15~30%, the wheel pressure can be reduced by 15~30%, and its own height is also reduced by 20~30%.

2. The hook limit is small and the working area is large.

The trolley adopts a compact design, and the hook lifts higher and is closer to the workshop track, which increases the working range of the hook in the workshop.

3. Fewer transmission links, high transmission efficiency, and low failure points.

The hoisting unit adopts the form of direct connection, which reduces the transmission links, reduces the number of failure points, improves the transmission efficiency, and reduces the energy consumption of the crane.

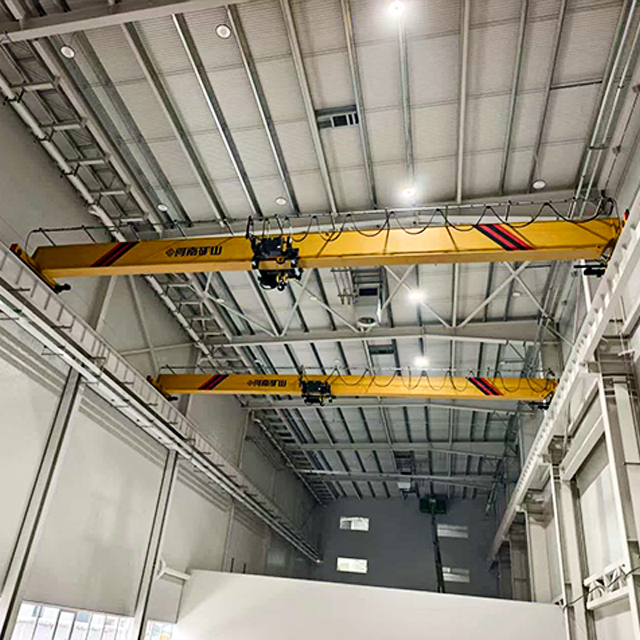

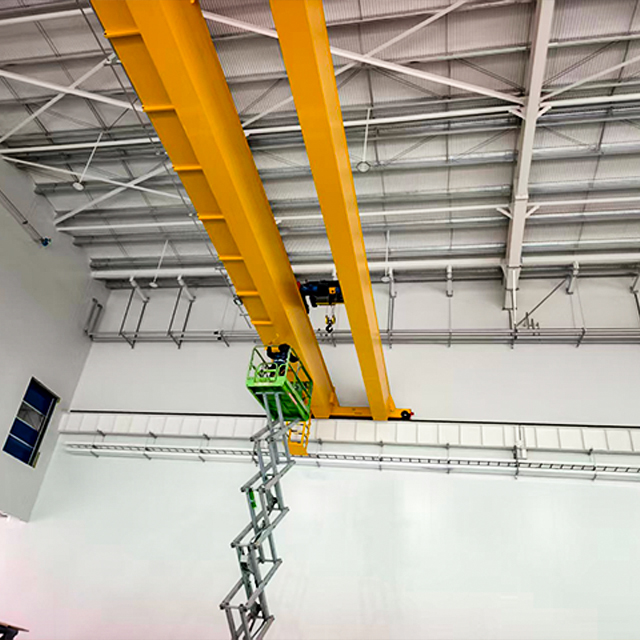

Case

Application

The KSSL 18t European overhead crane is suitable for machinery manufacturing and assembly, petrochemical, warehousing and logistics, power construction, paper industry, railway and other industries.
