Product description

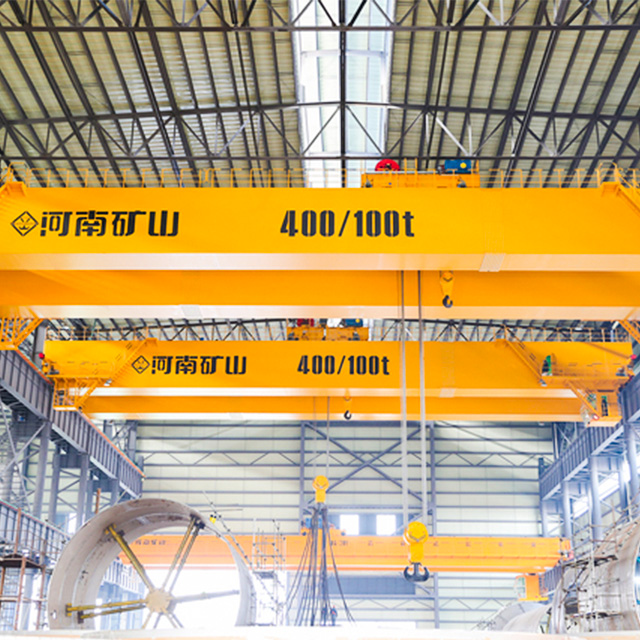

This KSQ 400t crane design is the combination of European crane technology and China crane manufacturing technology. It optimized the configuration, structure, and control system on the basis of general cranes. The design concepts comes from modularity, low energy consumption, maintenance free, safety, and simple operation, which creating a new type crane.
Main specification
Capacity: 5,10,16/3.2,20/5,32/5,50/10T, up to 450/80T |
Span: 10.5-31.5 m or more |
Lifting height: 6-30 m or more |
Lifting speed: 0.9-15 m/min or more |
Cross traveling: 5~45 m/min or more |
Long traveling: 20~92 m/min or more |
Widely used in: Factories, warehouses, etc. |
Technical Parameter
Item | KSQ Type European Double Beam Bridge Crane |
Lifting Capacity | 5-450 ton |
Span | 10.5-31.5 m |
Lifting Height | 12-40 m |
Lifting Mechanism | Winch trolley |
Working Class | A5-A6 |
Working Temperature | -25~40°C |
Power Supply | AC-3Phase-220/230/380/400/415/440V-50/60Hz |
Structure
The European design double girder bridge crane trolley operates with four drives, four sets of balance trolleys, the crane trolley operates with eight drives, 16 sets of balance trolleys, the entire trolley is driven by variable frequency drive, and integrated three in one drive.
Case
Application
The KSQ400t crane is suitable for loading and unloading in factories, warehouses and yards where the ambient temperature is -20°C to 50°C and the relative humidity is not greater than 85%, and are not allowed to work in flammable, explosive or corrosive atmospheres.
This European design crane widely meet the needs of various industries as it has the characteristics as below:
Segmented transportation
Dispersed wheel pressure
Video surveillance
Redundant protection for broken ropes
Large lifting height
Ultra long span
Small rail height
