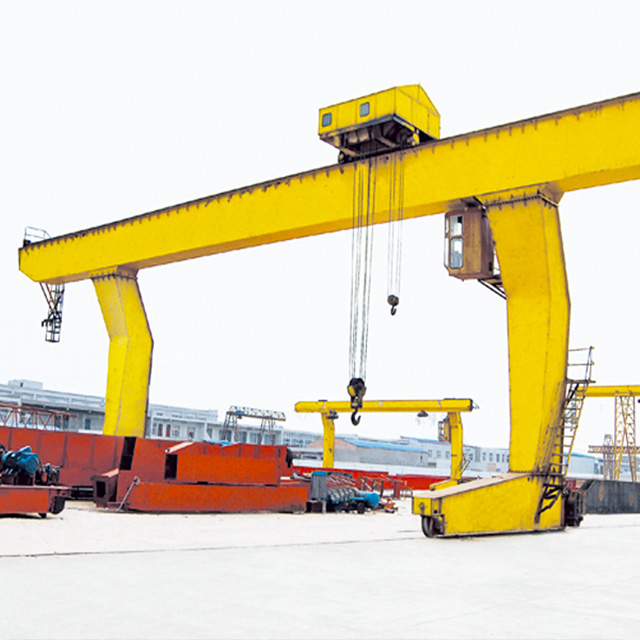

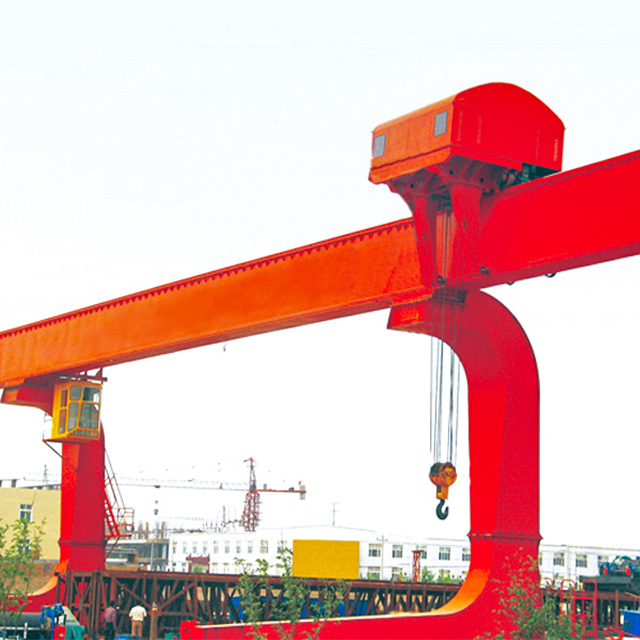

Single girder gantry crane (MH)

The single girder gantry crane is engineered for heavy duty outdoor operations, equipped with CD/MD electric hoists as standard. It’s mainly used for workshops, warehouses, storage yards, railways and other industry. It’s modular design comprising a main girder, rigid legs, flexible legs, crane traveling mechanisms, and a hoist trolley, which ensuring rapid installation and flexible scalability.

Availability:

Quantity:



Inquire

Product Description

Main Specifications

Capacity: 3–50 tons
Span: 3–35 meters(customized)
Lifting Height: 3–50 meters (customized for higher requirements)
Work duty: M3~M5
Protection class: IP55
Working temperature: -20~+40℃
Lifting Speed: Single speed/Dual speed (optional)
Control Modes: Pendant, Wireless remote control, Cabin control (choose anyone)

Technical Parameter

Capacity (t)			3	5	10	16	20
Span (m)			12, 16, 20, 24, 30
Operational method			Pendent Line With Press Button /Cabin/ Remote
Speed (m/min)	Lifting		8 ,8/0.8	8,8/0.8	7,7/0.7	3.5	3.5
	Cross travelling		20	20	20	20	20
	Long travelling	Ground	20	20	20	20	20
		Cabin	20,30,45	20,30,40	30,40	30,40	30,40
Motor (Kw)	Lifting		ZD41-4/4.5	ZD141-4/7.5 ZDS10.8/4.5	ZD151-4/13 ZDS11.5/4.5	ZD151-4/13	ZD152-4/18
			ZDS1-4/0.4/4.5
	Cross travelling		ZDY12-4/0.4	ZDY121-4/0.8	ZDY21-4/0.8×2	ZDY121-4/0.8×2	YZD-4/0.8×4
	Long travelling	Ground	ZDY21-4/0.8×2	YZY22-4/1.5×2	YZR22-4/1.5×2	YZR160M1-6/6.3×2	YZR160M1-6/6.3×2
			ZDY21-4/1.5×2	YZR132M2-6/3.7×2		YZR160M2-6/8.5×2	YZR160M2-6/8.5×2
		Cabin	ZDR100-4/1.5×2	YZR112L1-4/2.1×2	YZR112L1-4/2.1×2	YZR160M2-6/8.5×2	YZR160M2-6/8.5×2
			ZDR112-4/2.1×2	YZR160M1-6/2.1×2	YZR160M2	YZR160L2-6/11×2	YZR160L2-6/11×2
Electric hoist (Model)			CD1/MD1	CD1/MD1	CD1/MD1	CD1	MD1
Lifting height (m)			6, 9, 12, 18, 24,30
Working duty			A3
Power supply			380V 50HZ 3phase AC (According to your demand )

Structure

Features

I. Our single girder gantry crane system comprises five core components:

1. Portal frame structure

2. Lifting trolley assembly

3. Gantry travel mechanism

4. Operator cabin

5. Electrical control system

II. Frame Design Features

1. Box-section single girder with dual supporting legs.

2. L-shaped configuration formed by legs and lower cross beam.

3. Integrated cantilevers on both sides for enhanced cross-span material handling.

4. Superior load transfer capability from main span to cantilever zones.

III. Lifting Trolley:

1. Side-suspended design with hoisting gear mounted on the girder’s side.

2. ≤20t: Vertical anti-rolling wheels with two support points.

3. >20t: Horizontal anti-rolling wheels with three support points.

IV. Operator Cabin

Fully enclosed design with ergonomic features:

·Adjustable operator seat

·Insulated flooring

·Tempered safety glass windows

V. Optional accessories:

·HVAC system (heating/ventilation/AC)

·Audio alarm systems

·Two-way radio communication

VI. Power Supply Options

1. Cable reel system (standard)

2. Overhead conductor bars (alternative)

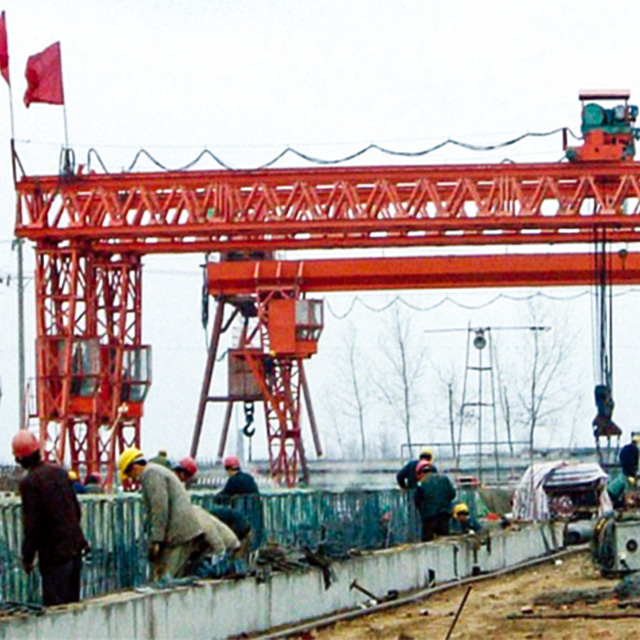

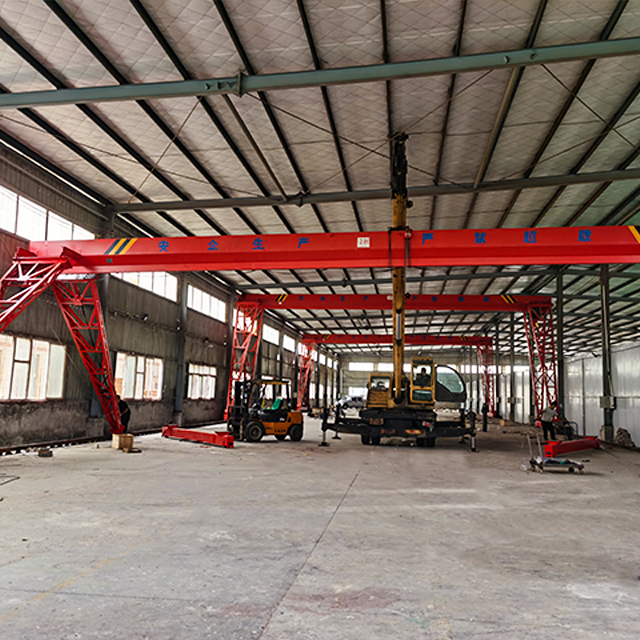

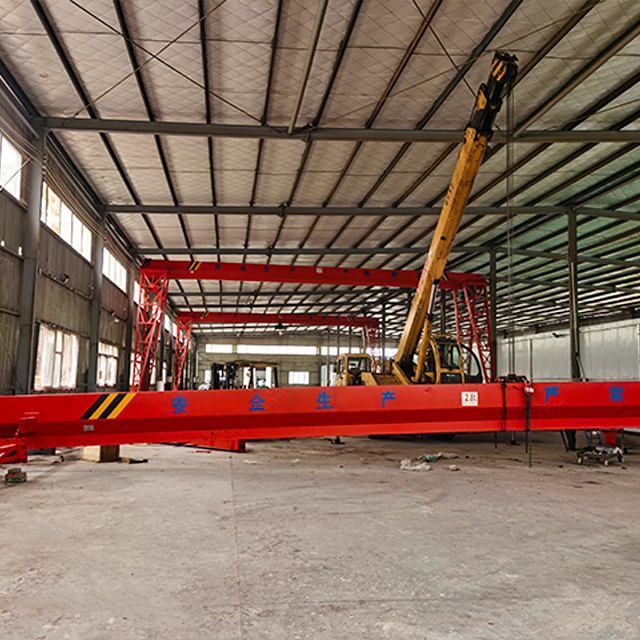

Case

Application

This single gantry crane is widely applied to do loading and unloading work in outdoor. Such as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on. It has features of beautiful and durable appearance, perfect performance, low cost, easy maintenance, high adaptability and so on.
