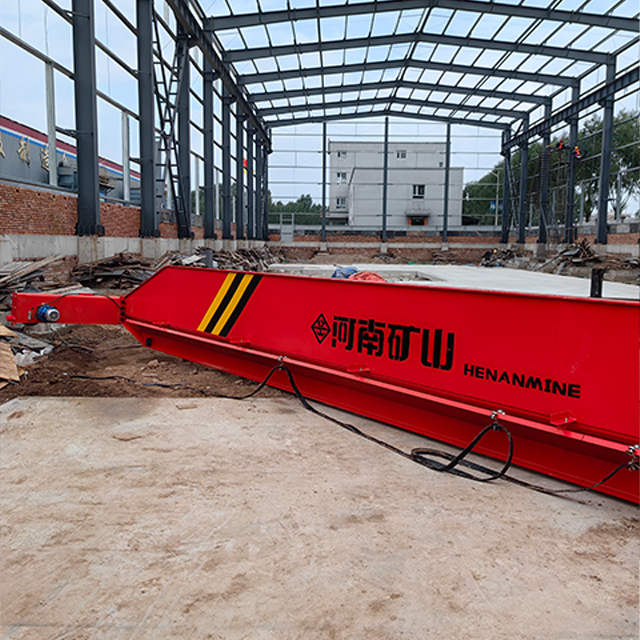

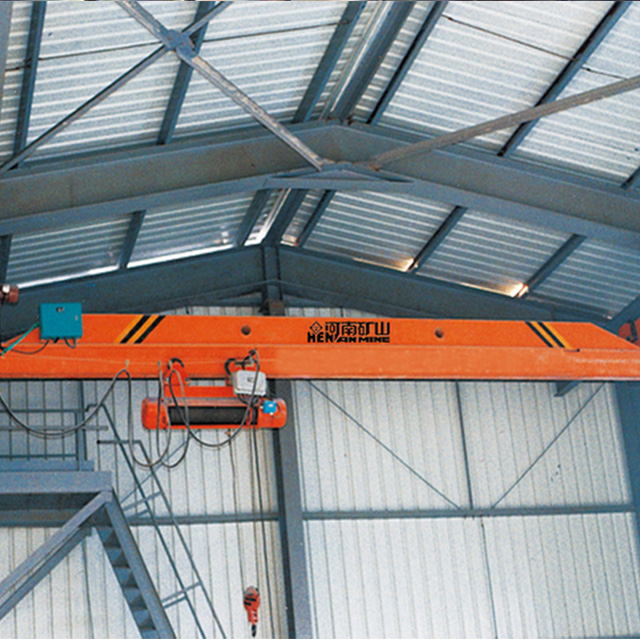

Single girder electric hoist suspension crane

Product description

The electric single girder overhead crane is composed of main beam, end beam, electric hoist and electric sports car, welded by steel plates and I-beams. It is suspended on the I-beam at the top of the factory building. The length of the console is from 0.5 to 1 m. The electric winch is located along the main beam. The bottom flange of the I-beam passes through for lifting work. It has the characteristics of lightweight structure, convenient to install and maintain, and is widely used in production workshops, warehouses, goods yards and other places. Vacancy level A3-A5.

Main specification

• Capacity: 0.5-5ton

• Span: 3-16m

• Working grade: A3-A5

• Working temperature: -25℃ to 40℃

Technical Parameter

Structure

The electric hoist of single girder suspension overhead crane moves along the main beam horizontally and vertically, and the operation is pretty smooth, reliable and safe. The working span is often ranges from 3 to 16 meters, and it belongs intermediate working class, which can be operated by wire and wireless control. Certain cantilevers can be added with the condition of workshops or personal demand.suspension overhead crane is prohibited to use the equipment at combustible, explosive or corrosive environment.

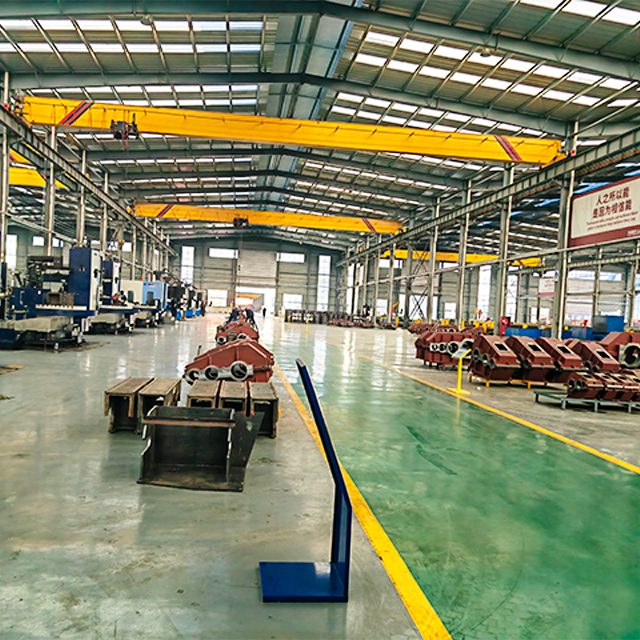

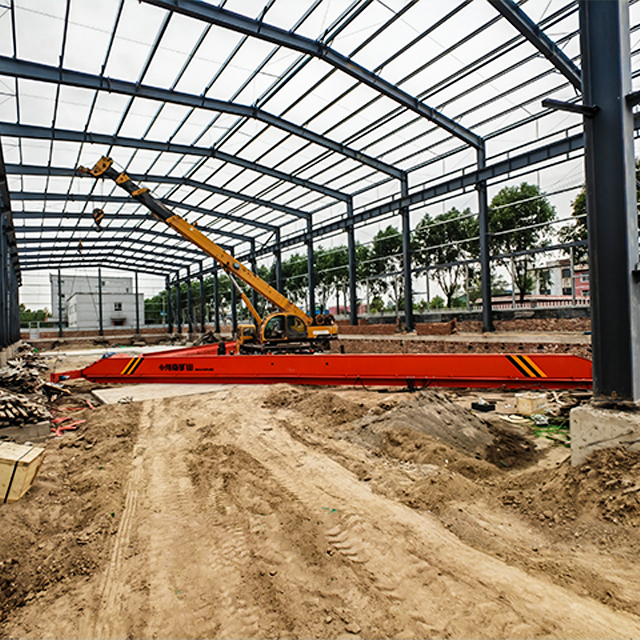

Case

Application

Single girder suspension overhead crane often works together with CD1 or MD1 electric hoist, which is a kind of track lifting device, and it is often used in the assembly workshop, warehouse, caves and other places. Single girder suspension crane often has lower lifting capacity and height, which is especially suitable for small construction works. The main girder steel has high hardness, which has strong impact resistance and high quality.
