Product description

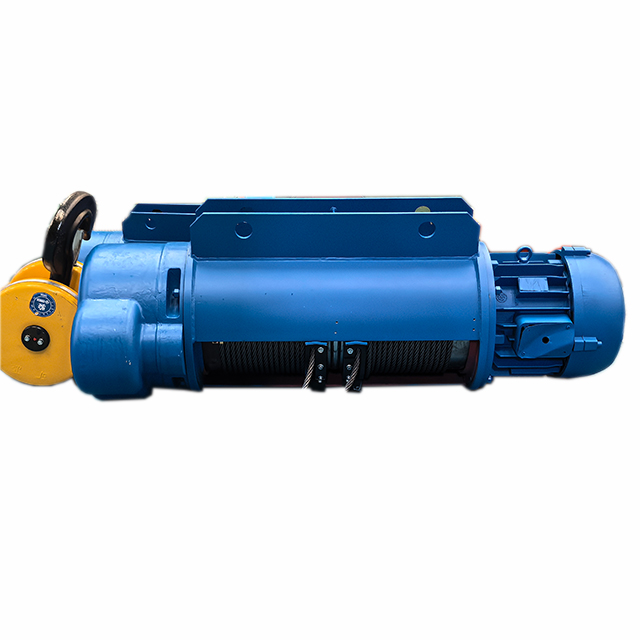

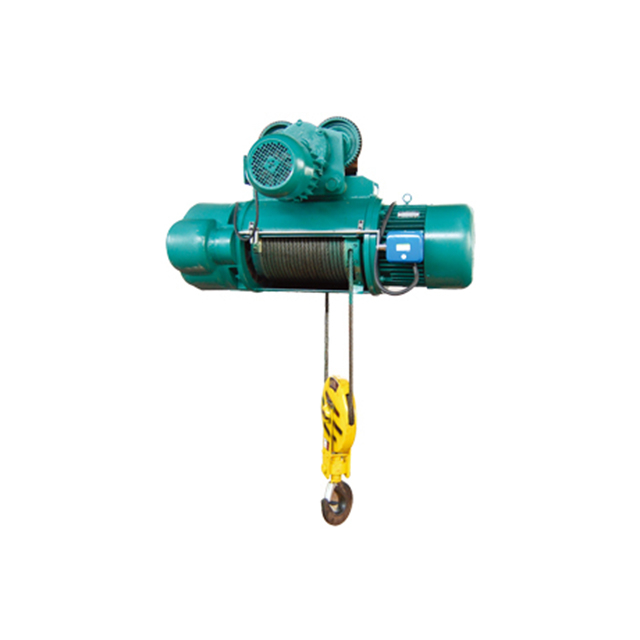

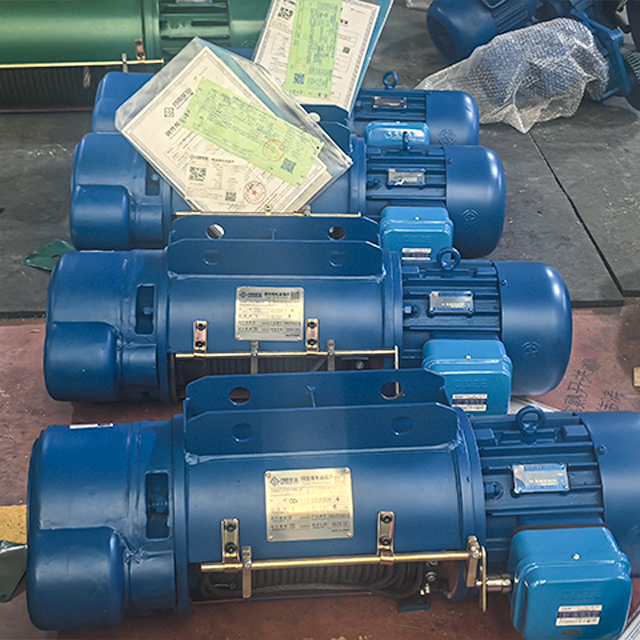

A wire rope electric hoist is a lightweight and compact lifting device that uses a wire rope as the lifting medium. It features a compact structure, light weight, and easy operation, primarily used for hoisting and moving heavy loads.
Technical Parameter
Wire Rope Electric Hoist | |||||||||
Model | CD/MD | ||||||||
Lifting capacity(t) | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 | |
Lifting height(m) | 3,6,9 | 6,9,12,18,24,30 | 9~30 | 9,12,18 | |||||
Lifting speed(m/min) | 8 | 8 | 7 | 3.5 | 4 | ||||
(0.8/8) | (0.8/8) | (0.7/7) | (0.35/3.5) | ||||||
Traveling speed(m/min) | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20 | 20 | |
Wire | Dia.(mm) | 4.8 | 7.4 | 11 | 13 | 15 | 15 | 17.5 | 19.5 |
Spec. | 6×37+1 | 6×37+1 | 6×37+1 | 6×37+1 | 6×37+1 | 6×37+1 | 6×37+1 | 6×37+1 | |
Lifting motor | Type | ZD121-4 | ZD122-4 | ZD131-4 | ZD132-4 | ZD141-4 | ZD151-4 | ZD151-4 | ZD152-4 |
Power(kW) | 0.8 | 1.5 | 3 | 4.5 | 7.5 | 13 | 13 | 18.5 | |
Rotation speed | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | |
Traveling motor | Type | ZDY111-4 | ZDY111-4 | ZDY112-4 | ZDY112-4 | ZDY121-4 | ZDY121-4 | ZDY121-4 | ZDY121-4 |
Power(kW) | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8x2 | 0.8x2 | 0.8x4 | |
Rotation speed | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | |
Power Source | 3PAC 380v,50HZ | ||||||||
Structure
The wire rope electric hoist consists of an electric motor, a transmission mechanism, and a drum or sheave. It is usually equipped with a brake for safety. The wire rope is spooled in a single layer and kept neatly arranged by a rope guide.
Application
Electric wire rope hoist is suitable for material handling in industrial and mining enterprises, warehouses, docks, and other locations. The lifting capacity ranges from 0.1 to 80 metric tons, with a lifting height of up to 3 to 30 meters. It is commonly used in basic construction fields such as building installation, bridge construction, metallurgy, and mining. It can be installed independently on I-beams or used in conjunction with electric/manual single-girder crane, double-girder crane, cantilever crane, gantry cranes and other cranes.
