Product description

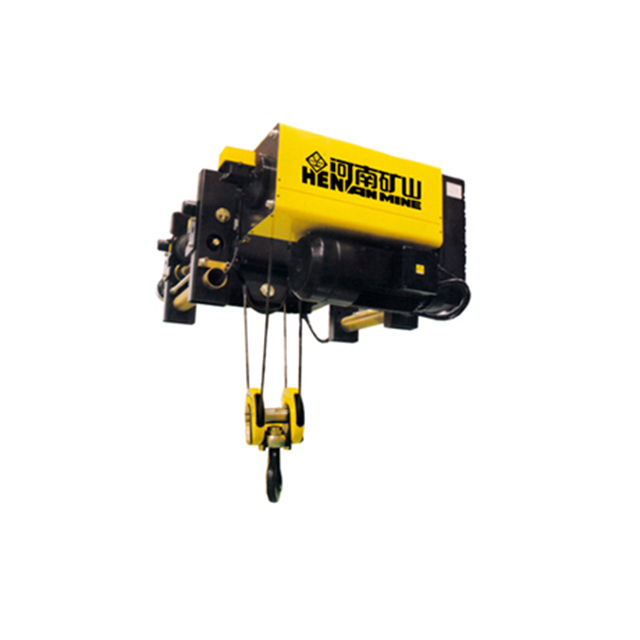

The European style electric hoist, embodying advanced European design concepts and manufacturing craftsmanship, offers an unparalleled lifting experience. It's more than just a tool for moving heavy loads—it's the intelligent choice for optimizing your production line, maximizing space utilization, and ensuring operational safety.
Technical Parameter
European Style Electric Hoist | |||||
Rated Load Capacity t | Work duty FEM | Work Duty ISO | Lift Height m | Lift Speed M/min | Trolley speed M/min |
3.2T | 2m | M5 | 6/9/12/15/18 | 0-5.0 | 0-20 |
3.2T | 2m | M5 | 6/9/12/15/18 | 0-8.0 | 0-20 |
5T | 2m | M5 | 6/9/12/15/18 | 0-5.0 | 0-20 |
5T | 2m | M5 | 6/9/12/15/18 | 0-8.0 | 0-20 |
8T | 2m | M5 | 6/9/12/15/18 | 0-4.0 | 0-20 |
8T | 2m | M5 | 6/9/12/15/18 | 0-4.5 | 0-20 |
10T | 2m | M5 | 6/9/12/15/18 | 0-4.0 | 0-20 |
10T | 2m | M5 | 6/9/12/15/18 | 0-5.0 | 0-20 |
12.5T | 2m | M5 | 6/9/12/15/18 | 0-4.4 | 0-20 |
12.5T | 2m | M5 | 6/9/12/15/18 | 0-5.0 | 0-20 |
16T | 2m | M5 | 6/9/12/15/18 | 0-4.4 | 0-20 |
16T | 2m | M5 | 6/9/12/15/18 | 0-5.0 | 0-20 |
20T | 2m | M5 | 6/9/12/15/18 | 0-3.6 | 0-20 |
20T | 2m | M5 | 6/9/12/15/18 | 0-5.0 | 0-20 |
Structure
Key Advantages: Why Choose Our European-Style Electric Hoist?
1. Lightweight Design, Enhanced Efficiency
Reduces Structural Load: Crafted from high-strength aluminum alloy with a modular design, its lightweight construction significantly lowers the demands on your factory's support structures and runways.
Saves Valuable Space: Its compact build and low headroom maximize your workshop's usable space, allowing for more flexible and spacious facility layouts.
2. Superior Safety & Reliability
We understand that safety is fundamental. Our hoists integrate multiple protective features:
Overload Protection: Monitors load in real-time to prevent hazardous overloads.
Fail-Safe Braking System: A dual braking mechanism engages automatically in case of power loss, ensuring absolute security.
Limit Switches: Precise upper and lower travel limits prevent over-hoisting or lowering.
Robust IP Rating (IP54/55): Effective resistance against dust and water ingress, ensuring reliable performance in demanding industrial environments.
3. High Efficiency & Long-Term Durability
High Duty Cycle (Up to Class M6): Far exceeds the capability of conventional hoists, handling more intensive and frequent operation with ease.
Smooth & Controlled Operation: An optimized motor and gear system ensure smooth acceleration and deceleration, minimizing load swing for precise positioning.
Extended Service Life: Core components are precision-engineered and treated with special processes for exceptional longevity, reducing your total cost of ownership.
4. User-Friendly & Intelligent Operation
Modular Construction: Simplifies maintenance; potential issues are resolved through quick module replacement, drastically cutting downtime.
Ergonomic Hook Design: Features 360° rotation and a safety latch for flexible and secure load handling.
Low Voltage Control (Optional): Safe and comfortable 24V/48V pendant control.
Application
Our Euro low room electric hoists boost productivity in a wide range of applications:
Manufacturing & Assembly: Production line handling in automotive, machinery, and electronics.
Warehousing & Logistics: Material movement and stacking in warehouses and distribution centers.
Maintenance & Service: Equipment repair and upkeep in workshops, power plants, and facilities.
Wide-Ranging Use: Also ideal for steel, chemical, and paper industries, among others.
