2026 Bridge Crane Guide | Overhead Crane Systems & Industry 4.0
In the fast-paced world of manufacturing, warehousing, and heavy industry, efficiency is directly tied to material handling equipment. At the heart of most industrial facilities lies the Bridge Crane (also known as an Overhead Crane or EOT Crane—Electric Overhead Traveling).
Whether you are moving 20-ton steel coils or assembling delicate aerospace components, the modern bridge crane has evolved significantly. Today, it is not just about lifting capacity; it is about smart integration, energy efficiency, and absolute safety. This guide explores the technical specifications, applications, and emerging trends defining bridge cranes in 2026 .
A bridge crane is a type of overhead crane that consists of parallel runways with a traveling bridge spanning the gap. The hoist, which lifts the load, moves laterally along this bridge. This design maximizes usable floor space, as the system operates overhead without obstructing ground-level operations .
The three primary structural components include:
The Bridge Girder: The main horizontal beam that supports the trolley and hoist.
The End Trucks: Located on either end of the bridge, these house the wheels that allow the crane to travel along the runway.
The Hoist & Trolley: The lifting mechanism (wire rope or chain) and the unit that moves it across the bridge.

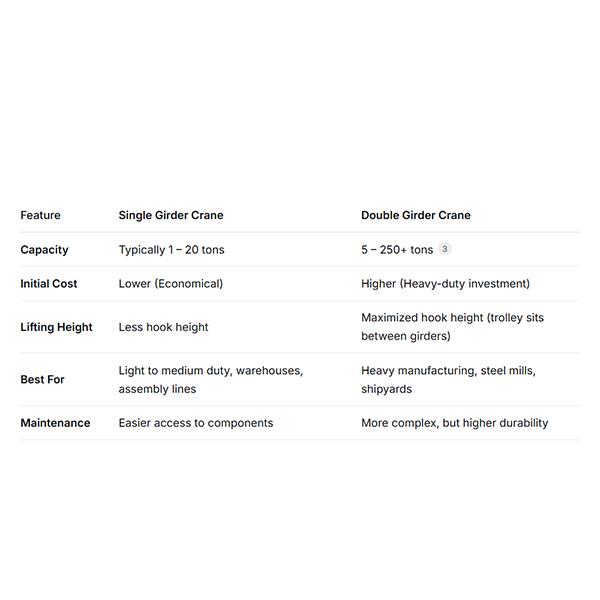

Choosing the right configuration depends on your facility’s lifting capacity, span requirements, and budget.
Recommendation: For standard workshops with capacities under 15 tons, a Single Girder offers the best price-to-performance ratio. For heavy-duty cycles and spans over 25 meters, a Double Girder is non-negotiable .
Bridge cranes are the backbone of industrial logistics. Here is how different sectors utilize them:
Automotive Manufacturing: Used on assembly lines to lift engines, gearboxes, and car bodies with precision. The smooth variable speed drives prevent damage to sensitive components .
Steel & Metallurgy: Double girder cranes handle raw materials, billets, and coils in high-temperature, high-dust environments. These often require heat-resistant features and heavy-duty brakes .
Energy & Utilities: In thermal power plants and wind turbine manufacturing, bridge cranes are used for the maintenance of heavy turbines and generators .
Waste Management: Specialized corrosion-resistant cranes handle large waste compactor blocks and transfer bins in harsh environments .
Safety is the top priority in crane operations. When selecting a bridge crane, ensure it complies with international standards (ISO, FEM, or ASME) and includes:
Overload Limiter: Automatically cuts power if the load exceeds the rated capacity .
Emergency Stop System: Instant shutdown capability from the pendant or remote.
Limit Switches: Prevents the hook from traveling too high (overwinding) or too low.
Anti-Sway Technology: (Optional but recommended) Improves load stability and positioning accuracy, protecting the load and nearby workers .
The biggest shift in 2025/2026 is the integration of IoT and Smart Monitoring. Modern bridge cranes are becoming data-generating assets.
Predictive Maintenance: Sensors monitor motor temperature, brake wear, and gearbox vibration. The system alerts you before a breakdown occurs, reducing downtime by up to 40% .
Usage Analytics: Track how many lifts you perform daily and the average weight. This data helps optimize workflow and identify bottlenecks.
Remote Diagnostics: Technicians can troubleshoot software issues via the cloud without an expensive site visit.
Investing in a bridge crane is a strategic decision affecting your production floor for decades. Whether you opt for a cost-effective single girder model or a heavy-duty double girder system, prioritize safety features and consider future smart upgrades.
